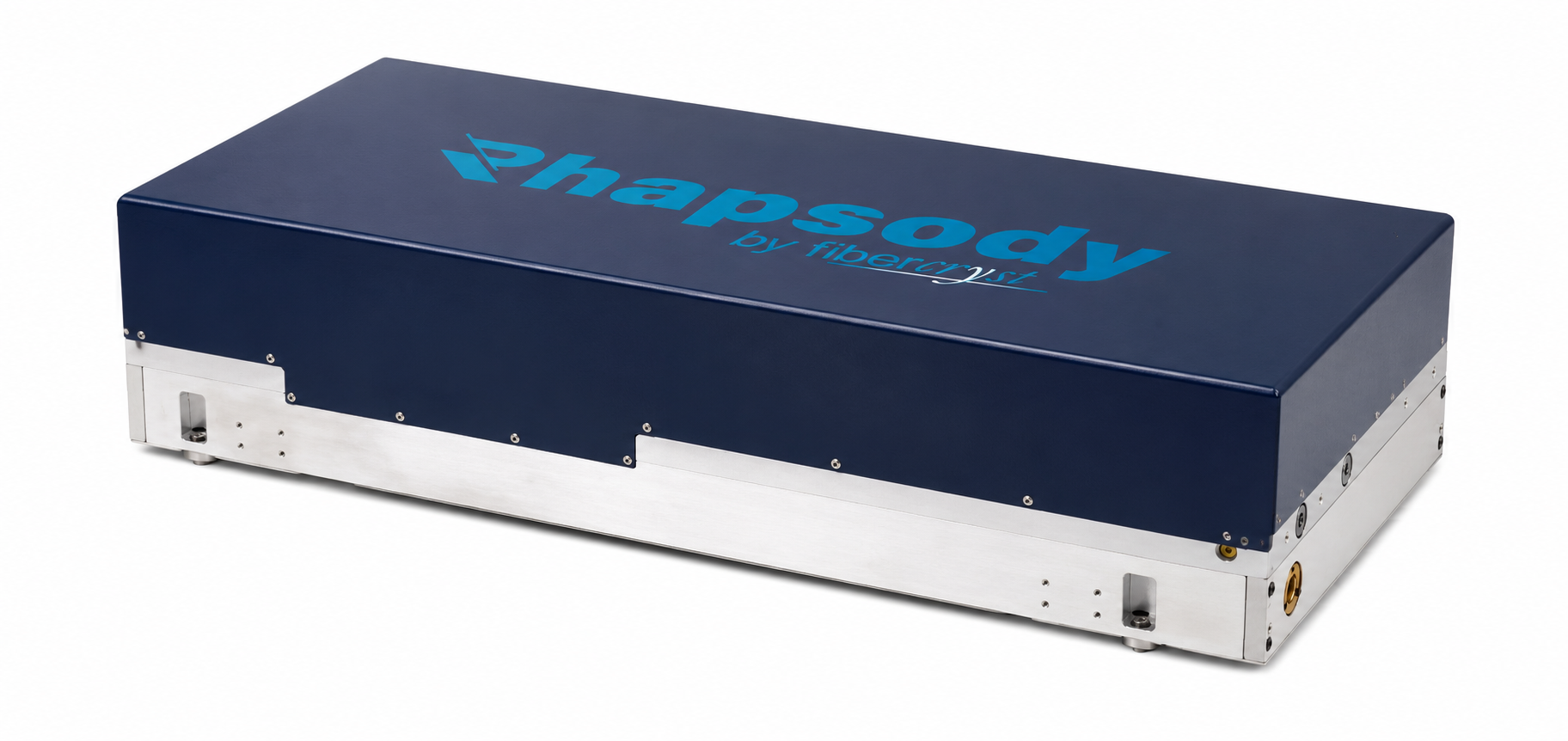

Laser Series
Rhapsody Laser series is a range of powerful industrial femtosecond lasers offering output power up to 100W IR and pulse energies in excess of 500µJ, with pulses shorter than 500 fs.
A 200W IR version is in preparation, delivering a pulse energy of 500µJ at 400 kHz for a pulse duration shorter than 500fs.
On request, FC supplies Green and UV versions, as well as IR versions with pulses shorter than 100 fs.
Download Datasheet
FEMTO SNAP SHOT
- Ultra-short pulse duration < 500 fs
- Average power up to 120 W
- Peak energy up to 500 µJ
- Repetition rate: 240 kHz to 1 MHz
- Center wavelength: 1030 nm ± 2 nm
- Excellent beam quality: M² ≤ 1.3
- Polarization: Linear vertical
- Beam diameter: ~2 mm (other on request)
- Fast warm-up: < 30 minutes
- Power stability: < 2% RMS
- Supports BURST mode and PSO synchronization
- Available in Standard (S), High Energy (HE) and Very High Energy (HHE) versions
SPECIFICATIONS
| Rhapsody 4019 HE | Rhapsody 4021 S | Rhapsody 4021 HHE | ||
| VERSION | HIGH ENERGY | STANDARD | VERY HIGH ENERGY | |
| Average Power | 200 kHz – 600 kHz | 120 W | 120 W | |
| Repetition Rate | 60-90 W | 1 MHz | 240 kHz | |
| Pulse Energy | 300 µJ – 150 µJ | 150µJ | 500µJ | |
| Average Power Stability | <2% | |||
| Center wavelength | 1030 nm ± 2 | |||
| PER | > 20 dB | |||
| Polarization direction | vertical | |||
| Pulse duration | <500 fs | |||
| Beam diameter* | 2 mm | |||
| Beam divergence | 2 mrad | |||
| Beam Ellipticity | ≥0.9 | |||
| Beam Quality (X/Y) | M² ≤ 1.3 | |||
| Warm-up time | < 30min | |||
| Dimensions**(l x L x h) | 645 X 480 x 220 mm | |||
| Weight*** | 76 kg | |||
* Other diameters on request
**Dimensions of Laser Head. Does not include PSU dimensions PSU dimensions : 560 x 430 x 134 mm
*** Weight of Laser Head. Does not include PSU weight. PSU weight : 9 kg
Mechanical data
-
PSO (Position Synchronized Output)
-
Programmable Burst
-
Programmable number of pulses (up to 10)
-
Programmable single pulse amplitude
-
Cooling
-
Water-cooled
